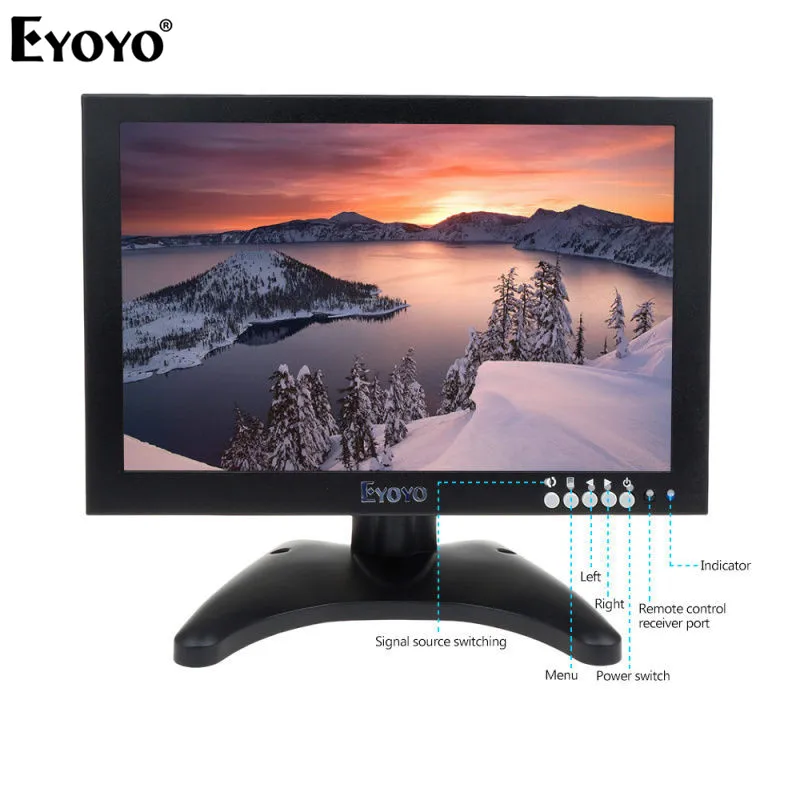

Eyoyo EM10C 10" IPS 1920*1200 HD LCD TV Display CCTV Security Surveillance Screen hdmi monitors with HDMI / VGA / Video / Audio
This monitor is a high quality liquid-crystal display (LCD) that uses thin-film transistor (TFT) technology to improve image qualities such as addressability and contrast. A TFT LCD is an active-matrix LCD, in contrast to passive-matrix LCDs or simple, direct-driven LCDs with a few segments.
TFT LCDs are used in appliances including television sets, computer monitors, camcorder video display, handheld video systems, personal digital assistants, navigation systems and projectors.
TFT LCDs are also used in car instrument clusters because they allow the driver to customize the cluster, as well as being able to provide an analogue-like display with digital elements.
- Simple fashion body, light and portable;
- Metal rugged housing
- Uses 10 inch FULL HD resolution (1920x1200) IPS LED screen, the image is clear and exquisite, colourful;
- Support for BNC input for professional security monitoring equipment is connected, so that signal mutual interference reduction, can achieve the best signal effect.
- Support chromatic Ypbpr input,color more vivid, the image more realistic;
- Video mode input switching, Support multi-channel video reception, high sensitivity, strong interference resistance
- Built-in high-quality loudspeakers;
- With timing switch machine and automatic signal standby function.
- Support USB interface for media player:
- Storage medium:FS/FAT32/FAT16/NTFS
- Picture JPG/JPEG/BMP/PNG
- Music Mp3/WMA/M4A/AAC
- Movie AVI/MP4/TS/TRP/MKV/MOV/MPG/DAT/VOB/RM/RMVB
- Support for VGA input, can be used for computer liquid crystal display:
- (640*480/60Hz, 800*600/60Hz, 1024*768/60Hz,1280×1024/60Hz,1360×768/60Hz,1920×1080/60Hz);
- Support high-definition:
- 480i 720x240 /60Hz,
- 480P 720x480 /60Hz,
- 576i 720x288 /50Hz,
- 576P 720x576 50Hz,
- 720P 1280x720 50/60Hz,
- 1080i 1920x540 50/60Hz,
- 1080P 1920x1080 50/60 Hz,
- Panel size: 10 inch digital display
- Video input interface: VGA/BNC
- Aspect ratio: 16:10
- Resolution: 1920 x 1200
- Brightness: 600cd/m2
- Contrast ration: 1000:1
- Response time: 18ms
- Power input: DC12V-1000mA
- Power mode support: Power adapter
- Adjustable stand: Landscape
- Speaker: 10W(max)*2
- OSD Menu Language options: ENGLISH RUSSIAN PORTUGAL SPAIN DETCH FRANCE ITALY CHINESE
- Temperature range (operation): 0-40 centigrade degree.
- CE ROHS Certificate
Apply for: CCTV/LAB Microscope/CNC Monitor/FPV/DSLR Field monitor/PC Monitor etc.
if use one DSLR camera monitor,it only support HD720P/1080P/1080I at 50,60fps
1x 10" IPS Monitor
1x Remoe controller
1x Monitor stand
1x BNC Cable
1x Power adapter
1x User's manual
1x Wall Bracket
